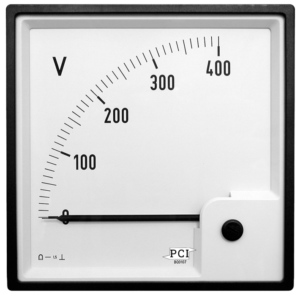

Meters for DC Voltage or Current with Moving Coil BQ
Meters with a moving coil are intended for measurement of direct currents or voltages. A measuring system with a core magnet is not sensitive to external electromagnetic fields and is resistant to mechanical impacts and vibrations.
Technical data
The scale is entirely linear and interchangeable. The accuracy class is 1.5. These meters are the result of a long tradition of producing analogue instruments in our factory. They are made on site from quality materials. Meters are available with different front frames:
BQ 0507 – 45 x 45 mm
BQ 0407 – 48 x 48 mm
BQ 0307 – 72 x 72 mm
BQ 0207 – 96 x 96 mm
BQ 0107 – 144 x 144 mm
BQ 2507 – 45 x 45 mm
BQ 2407 – 48 x 48 mm
BQ 2307 – 72 x 72 mm
BQ 2207 – 96 x 96 mm
BQ 2107 – 144 x 144 mm

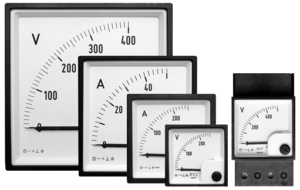

BQ0X07
Their dials can be 90 degrees in the BQ 0x07 and 240 degrees in the BQ 2x07. Ship versions of the BQ 0407, BQ 0307, BQ 0207, BQ 0107 are available. Special meters can also be made according to your wishes..
