Measuring Transducers

  • Programmable AC Voltage Transducers

Measuring transducers are instruments that convert physical quantities—such as temperature, pressure, level, or flow—into standardized, manageable electrical signals (e.g., analog current/voltage) for monitoring, control, and data processing. They incorporate sensors with electronics to provide accurate, isolated, and safe data transmission in industrial, energy, and process control application

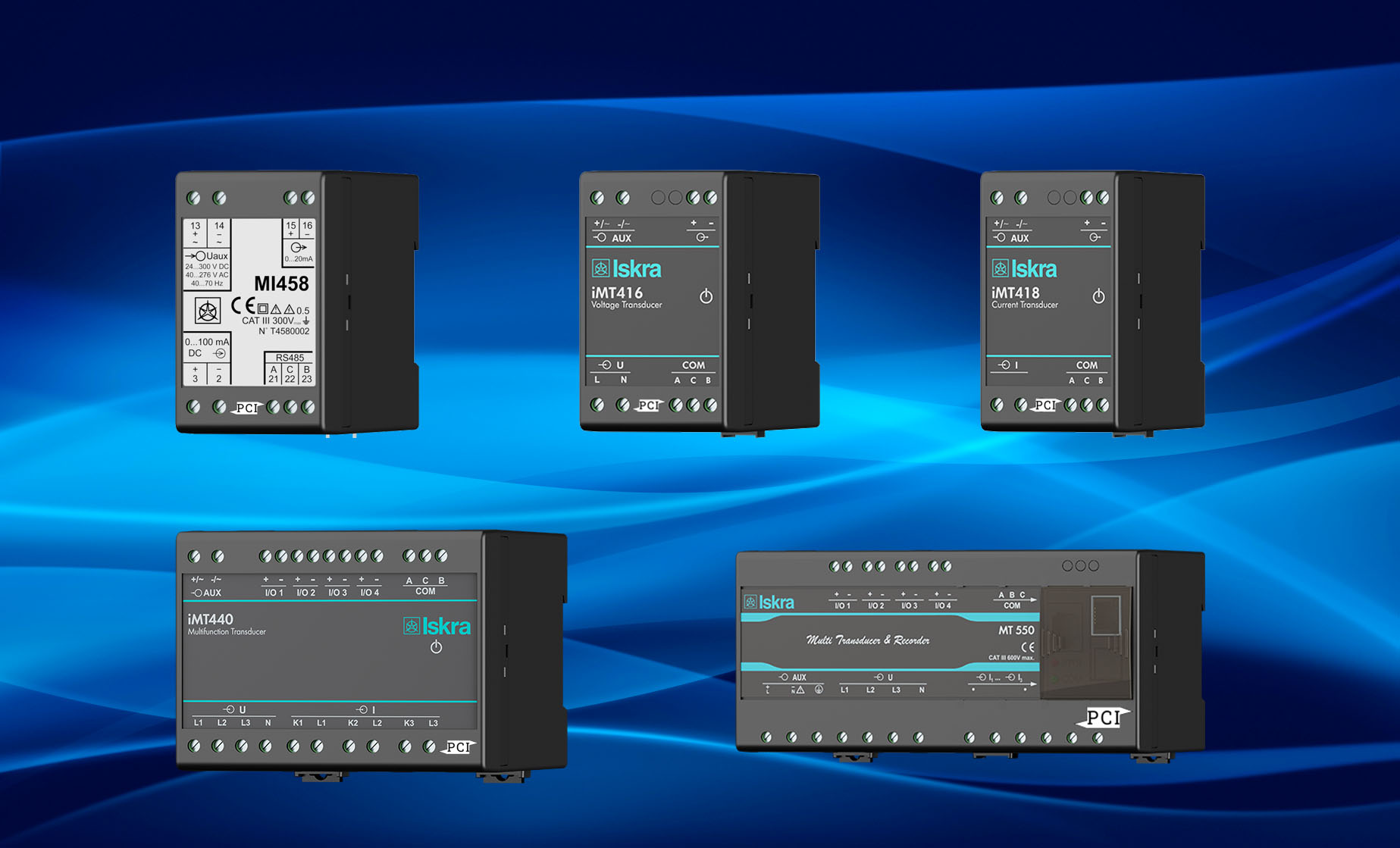

Measuring transducers MT 4xx are intended for measuring and monitoring single phase or three-phase electrical power network

iMT416

TRMS AC VOLTAGE OR FREQUENCY MEASUREMENTS. * VOLTAGE AUTO RANGE MEASUREMENTS UP TO 600 VL-N. * FREQUENCY MEASUREMENT RANGE 16 Hz– 400 Hz. * AC OR UNIVERSAL WIDE AUXILIARY POWER SUPPLY. * ACCURACY CLASS 0.5 (EN 60 688). * SERIAL (RS232 OR RS485) COMMUNICATION. * SIMPLE USB SETTING WITHOUT AUXILIARY POWER SUPPLY.

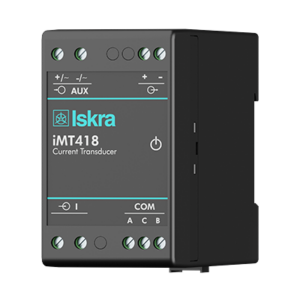

iMT418

TRMS AC CURRENT OR FREQUENCY MEASUREMENTS. * CURRENT AUTO RANGE MEASUREMENTS UP TO 12 A. * FREQUENCY MEASUREMENT RANGE 16 Hz – 400 Hz. * AC OR UNIVERSAL WIDE AUXILIARY POWER SUPPLY RANGE. * ACCURACY CLASS 0.5 (EN 60 688). * SERIAL (RS232 OR RS485) COMMUNICATION. * SIMPLE USB SETTING WITHOUT AUXILIARY POWER SUPPLY

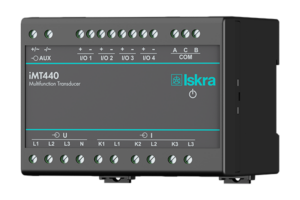

iMT440

VOLTAGE AND CURRENT AUTO RANGE MEASUREMENTS UP TO 600VLN, 12.5 A. * UNIVERSAL WIDE AUXILIARY POWER SUPPLY RANGE 24 – 300 VDC, 40 – 276 VAC. * POWER ACCURACY CLASS 0.5 (EN 60 688). * UP TO FOUR I/O MODULES. * PROGRAMMABLE BIPOLAR ANALOGUE OUTPUT; MULTIPLE BREAKPOINTS, NON-LINEAR CHARACTERISTICS. * SIMPLE USB SETTING WITHOUT AUXILIARY POWER SUPPLY. * CERTIFIED SHIP VERSION.

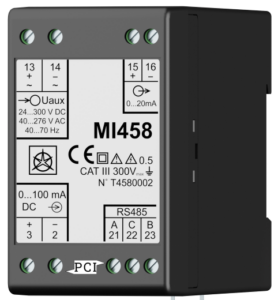

MI458

Measuring transducers MI 45x Measuring transducer of family MI 45x are designed for use in industrial process for conversion of DC current in to appropriate DC current or DC voltage signals. Types Configurator MI 458, MI 456 - Conversion of DC current in to appropriate DC current or DC voltage signals. MI 454 - Conversion of the wiper position of a potentiometer or slide wire into an accurate proportional DC current or DC voltage signals. MI 452 - Conversion of resistance into appropriate DC current or DC voltage signals. MI 450 - Conversion of nonlinear resistance sensors (RTD – sensors) into appropriate DC current or DC voltage signals

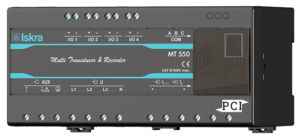

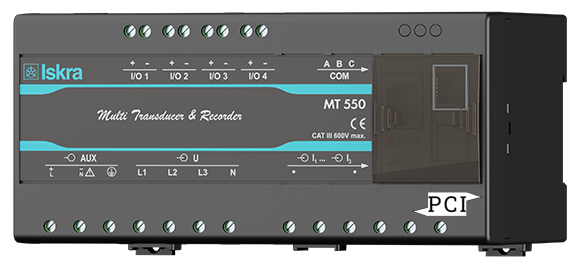

iMT550

Measuring transducers MT/UMT 5x0 Measuring transducers MT/UMT 5x0 are intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. They measure RMS value by means of fast sampling of voltage and current signals, which makes instruments suitable for acquisition of transient events. A built-in microcontroller calculates measurands (voltage, current, frequency, energy, power, power factor, THD phase angles, etc.) from the measured signals. Features Evaluation of the electricity supply quality in compliance with SIST EN 50160 Measurements of instantaneous values of more than 140 quantities (U, I, P, Q, S, PF, PA, f, ?, THD, MD, energy, energy cost by tariffs, etc.) Power accuracy class 0.2 Harmonic analysis of phase, phase-to-phase voltages and currents up to the 63rd harmonic Recording up to 32 measurands and 32 alarms in the internal memory (8 MB flash) Measurements of 40 minimal and maximal values in different time periods 32 adjustable alarms Frequency range from 16 Hz to 400 Hz Up to three independent communication ports (RS 232/485 up to 115,200 bit/s, Ethernet and USB communication possible) MODBUS and DNP3 communication protocols Remote display connection Up to 4 inputs or outputs (analogue outputs, pulse outputs, alarm outputs, tariff inputs) Additional communication port (COM2) Universal power supply (two voltage ranges) Automatic range of nominal current and voltage (max. 12.5 A and 600 VL-N) Adjustable tariff clock, display of electric energy consumption in selected currency Housing for DIN rail mounting User-friendly PC MiQen software.

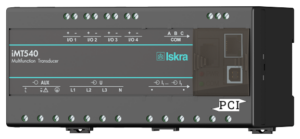

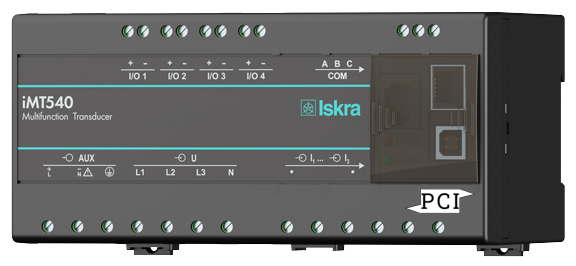

iMT540

Measuring transducers iMT540 The new series of measuring transducers iMT540 are intended for measuring and monitoring single-phase or three-phase electrical power network. They measure TRMS value by means of fast sampling of voltage and current signals, which makes instruments suitable for acquisition of transient events. A built-in microcontroller calculates measurands (voltage, current, frequency, energy, power, power factor, THD phase angles, etc.) from the measured signals. Features VOLTAGE AND CURRENT AUTO RANGE MEASUREMENTS UP TO 600 V?, 12.5 A. WIDE MEASUREMENT FREQUENCY RANGE 16 HZ – 400 HZ. POWER ACCURACY CLASS 0.2 (IEC-688), 0.1 ON COMMUNICATION. UP TO THREE COMMUNICATION PORTS. REMOTE DISPLAY iRD500. UP TO FOUR I/O MODULES. POWERFUL ANALOGUE OUTPUT; 6 VOLTAGE AND CURRENT RANGES, NON-LINEAR CHARACTERISTICS. Applications The iMT540 multifunction transducer is used for measuring and monitoring of all single-phase or three-phase values. Wide range of various I/O modules makes iMT540 a perfect choice for numerous applications. iMT540 can be delivered pre-configured to the required measuring set-up and output characteristic or it can be delivered un-configured for customer configuration with user friendly setting software MiQen. iMT540 supports a wide range of communication interfaces. Standard serial RS232/485 with speed up to 115200 baud is perfect for simple applications and serial bus interfacing. Ethernet 10/100 is ideal for a long distance monitoring and configuration of numerous transducers. USB 2.0 can be used for a fast set-up or memory acquisition.
